Exterior
Dimensions & Weight
Height: 19.5mm
Width: 107mm
Length: 185mm
Weight: 480g

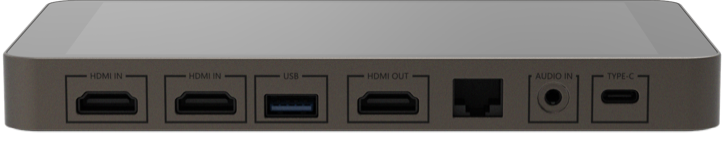

Ports
  • 1HDMI IN: Video input
  • 2USB IN: VIDEO INPUT
    (Please note in some usb webcams, only video can be captured.)
  • 3HDMI OUT: Video input
  • 4Ethernet: Connect to Internet by Ethernet cable
  • 5AUDIO IN: Connect with lavaliar microphone or mixer
  • 6TYPE-C: Power connector
  • 7AUDIO OUT: Connect with headphone for sound monitor
  • 8Sim Card Slot: Insert SIM Card to get into Internet
  • 9HOTSHOE: Mount YoloBox with camera
  • 10SD Card: Insert SD card for local assets
  • 11Power Button: Turn on and turn off
Encoded Format
  • Video Encoded Format:H.264
  • Audio Encoded Format:AAC (48k)
  • Video Recorded format:MP4
  • Audio Input Format:32kHz, 44.1kHz, 48kHz, 16-bit
  • Video Input Format:1080i/ 720p/ 1080p
  • Live Broadcast Resolution:480P/720P/1080P
Video Storage
  • Storage Card Type:SD Card
  • Storage Card Capacity:Expanded to 128G in FAT32 Format
Network Connection
  • WiFi:2.4G/5G
  • 4G Network Countries & Frequency Band For
  • Users:[NA:Variant for North America(US/Canada/Mexico)]
  • B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
  • Notes:Mexico B4
  • For Non-US/Canada/Mexico Users:(EM:Variant for EMEA/India/Korea/Taiwan/South
  • Asia/Latin America/Australia/New Zealand)Users:
  • B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
  • Notes:Thailand B7

  • Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
  • SIM Card Size:Standard SIM Card
Power
  • Power Interface:Type C, Quick Charge 3.0
  • Battery Capacity:3.7V/5500mAh
Transmission
  • Network Protocol:RTMP(S)
Working Environment
  • Operating Temperature:-10℃-40℃
  • Storage Temperature:5℃-40℃
